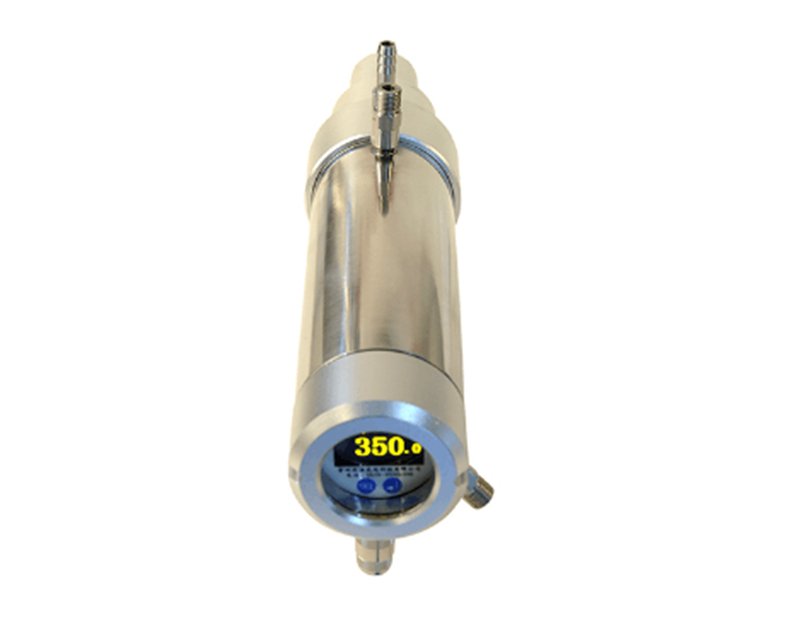

Infrared Thermometer ST

Changzhou Wheat Automation Technology CO.,LTD is a high-tech company engaged in electronic products . The company was established in May 2012, has many famous enterprises at home and abroad to establish a long-term friendly business relationship.

model	WA-SST-S6016	WA-SST--S7022	WA-SST-S8025	WA-SST-G2511	WA-SST-G3014	WA-SST-G3522	WA-SST-P0508	WA-SST-G1007
Temperature range（℃）	600～1600	700～2200	800～2500	250～1100	300～1400	350～2200	50～800	100～700
detector	Si (silicon photovoltaic cell)			InGaAs (Indium Gallium Arsenide)			PbS (lead sulfide)	InGaAs (ExpansionType indium gallium arsenide)
Working wavelength	（0.85～1.1）μm			（1.45～1.7）μm			（2.0～2.8）um	（2.0～2.6）um
main application	Hot-rolled, Metal forging, Casting,Induction heating, glass, cement kiln, semiconductors			Hot-rolled, galvanized wire,Non-ferrous metal processing, annealing furnace			Non-ferrous metal processing, induction heating, coating
Distance coefficient	100：1	100: 1 or 200: 1		60：1	100：1	100: 1 or200：1	100：1
Measuring distance	0.35m to infinity adjustable
measurement accuracy	± 0.5% tm ℃ (tm is the upper limit of temperature range)
Temperature resolution	0.1℃
Repeat accuracy	±2℃
Monochrome coefficient	0.100 ~ 1.000, step adjustable 0.001
Response time	5ms ~ 99.99s adjustable						20ms ~ 99.99s adjustable
Signal Processing	Peak, valley, average, high temperature and low alarm, power-down protection and other functions
Output	A variety of analog output 16bit (4mA ~ 20mA, 0mA ~ 20mA, 0V ~ 5V, 0V ~ 10V optional),Resolution 0.1 ℃, the maximum current loop output load 600Ω, the voltage output allows current 10mA
	Analog 12bit output 4mA ~ 20mA, resolution 1 ℃, the maximum load 600Ω
	Alarm output: upper limit, lower limit alarm, using optocoupler relay life unlimited,On resistance ≤ 25Ω, the maximum allowable voltage AC60V or DC60V, the maximum allowable current 120mA, response time 2ms
	PNP level output (output current 100mA, with overload protection)
	RS485 output, enabling parameter changes, data logging and query functions
Display method	Use of self-luminous industrial OLED display
Power supply	DC (20 ~ 30) V, power consumption: 5W (24V @ 200mA), with overvoltage, overcurrent, short circuit protection,Built-in EMI filter, anti-2500VDC burst interference.
Preheat time	Built-in constant temperature heater, power 10min after temperature measurement
Aim at the way	Built-in visible high-brightness green or eyepiece sight
interface	Adopt Germany binder plug and 12 core high temperature shielded cable (length 2.5m)
Use environment	-30 ℃ ~ + 55 ℃, without water cooling; -30 ℃ ~ +120 ℃, with water cooling
Degree of protection	IP65
