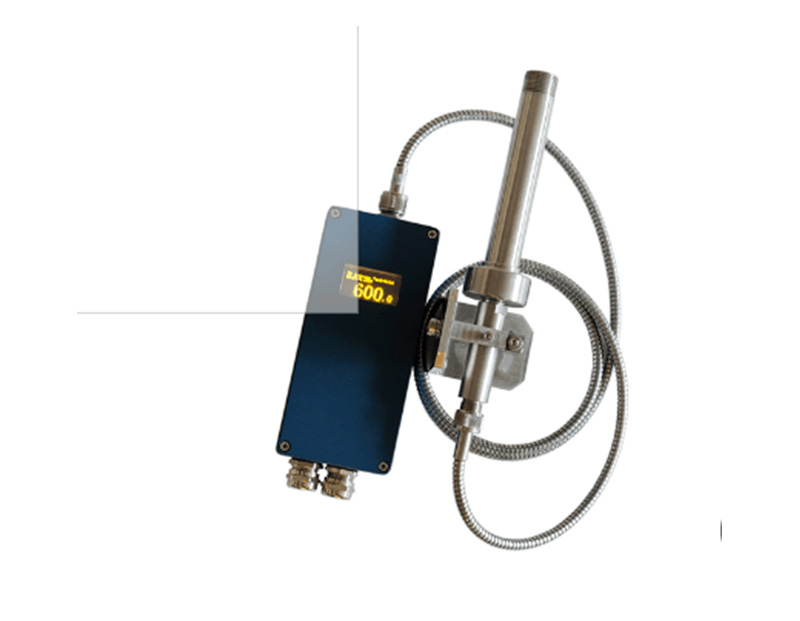

Infrared Thermometer WA-DSM

Changzhou Wheat Automation Technology CO.,LTD is a high-tech company engaged in electronic products . The company was established in May 2012, has many famous enterprises at home and abroad to establish a long-term friendly business relationship. Company mainly engaged in electronic products,Such as :Laser distance sensor, temperature sensor, Ultrasonic Level Meter, Isolator…

model	WA-DSM-F-S6016	WA-DSM-F-S7018	WA-DSM-F-S8025
Temperature range	600℃～1600℃	700℃～1800℃	800℃～2500℃
detector	Si / Si (stacked silicon)
Working wavelength	Wavelength 1: (0.7-1.08) μm, wavelength 2: 1.08 μm
main application	Continuous casting, hot rolling, induction heating, polycrystalline silicon and monocrystalline silicon, high temperature applications temperature measurement
Distance coefficient	50: 1 or 100: 1	150：1	150: 1 or 200: 1
Measuring distance	Fixed focal length 0.2m or more, adjustable focal length 0.15m to infinity adjustable
measurement accuracy	± 0.5% tm ℃ (tm is the upper limit of temperature range)
Temperature resolution	0.1℃
Repeat accuracy	±2℃
Monochrome coefficient	0.100 ~ 1.000, Adjustable in 0.001 increments
Two-color coefficient	0.850 ~ 1.150, Adjustable in 0.001 increments
Response time	Adjustable – the fastest response time is 10ms ~ 99.99s
Signal Processing	Peak, trough, average, high temperature and low temperature alarm, monochrome, two-color switchable, power-down protection and other functions
Output	Resolution 0.1℃，Analog 16bit output （4mA～20mA，0mA～20mA，0V～5V，0V～10V optional ），The maximum Load of the current loop output is 600Ω，current output 10mA
	Analog 12bit output 4mA ~ 20mA, resolution 1 ℃, the maximum load 600Ω
	Resolution 1℃，Analog 12bit output 4mA～20mA, the maximum load: 600Ω
	Alarms output: High or low process temperature alarm；PhotoMOS relay（ on resistance≤25Ω，current limit : 150mA，Maximum voltage: AC250V or DC300V）
	PNP level output（current output 100mA，with overload protection.）
Display method	Use of self-luminous industrial OLED display
Power supply	DC (20 ~ 30) V, power consumption: 5W (24V @ 200mA), with overvoltage, overcurrent, short circuit protection,Built-in EMI filter, anti-2500VDC burst interference.
Preheat time	Built-in constant temperature heater, power 10min after temperature measurement
Aiming method	Built-in visible red laser aiming
Operating temperature	Thermometer: -30 ℃ ~ +55 ℃, without water cooling; -30 ℃ ~ +120 ℃, with water coolingLens and fiber: -30 ℃ ~ +250 ℃
IP rating	IP54
